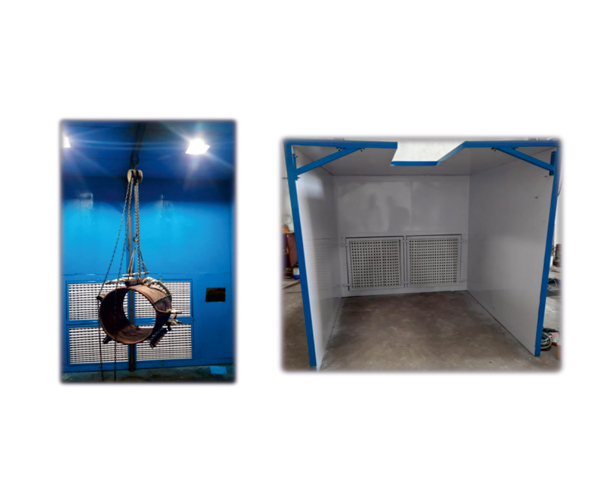

Front Open Paint Spray Booth System
Open Type Paint Spray Booths With Wall suction Type Design For Small Components Or Fabricated Components without pit

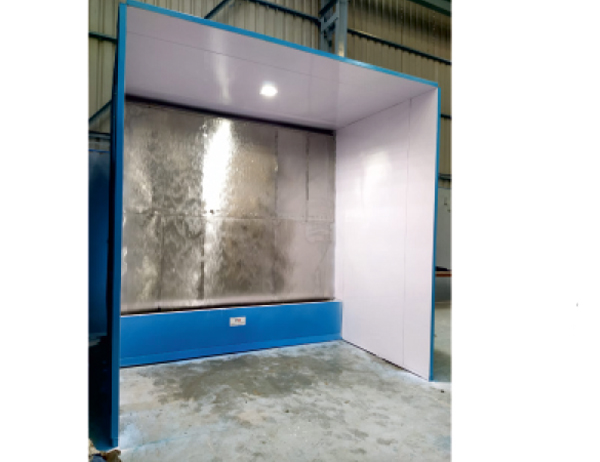

Water Curtain type Paint Spray Booth System
Paint Spray Booth with Water Curtain Type Wet Fume Collect is used for safe, healthy and quality spray painting. The health and explosion hazardous paint fume particles are sucked by the partial vacuum created by the exhaust fan through a curtain of water. Thus, air discharge into the atmosphere is clean and keep the working environment clean and friendly.
Paint Spray Booth is suitable for conventional airless & electrostatic painting, also paint spray booth provides better painting results.

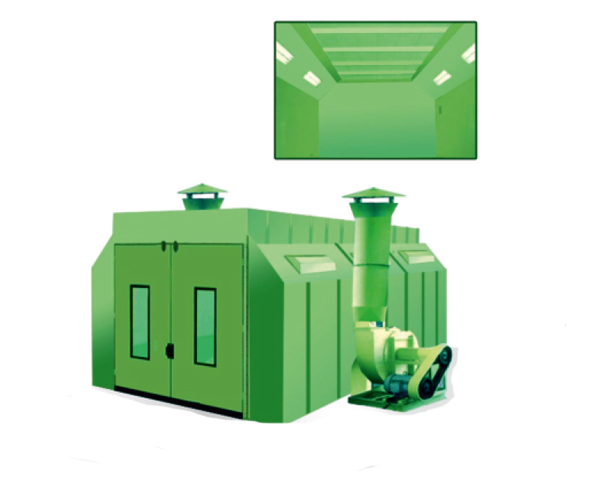

Draft Paint Spray Booth System
FINIMAC fully Enclosed Down Draft Dry Type Paint Spray Booth are designed to provide efficient, flexible and clean spray painting. The health and explosion hazardous paint fume particles are sucked by partial vacuum created by centrifugal fan through filters. Thus air discharge into the atmosphere is clean and there is no sludge disposal as found in normal Wet Spray Booth. The design of the paint booth will be of vertical down draft type paint booth with disposable paint trap filters on floor. The intake air into the paint booth is filtered by intake filter to avoid foreign particle deposition on the painted surface. The intake air is sucked into the room by the extraction modules located on the floor

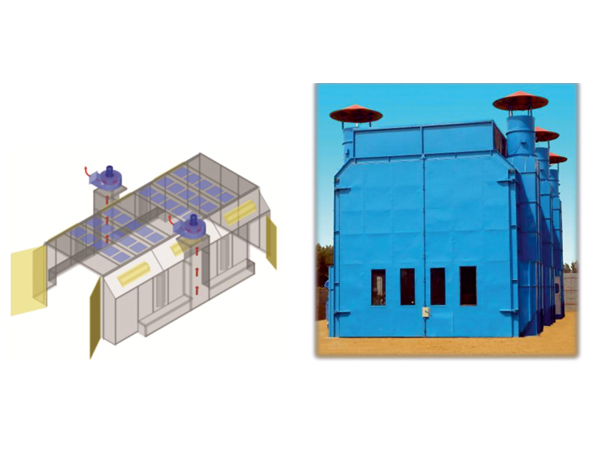

Semi Draft Paint Spray Booth System
FINIMAC Fully Enclosed Semi Down Draft Dry Type Paint Spray Booth are designed to provide efficient, flexible and clean spray painting. The health and explosion hazardous paint fume particles are sucked by partial vacuum created by Exhaust fan through filters. Thus air discharge into the atmosphere is clean and there is no sludge disposal as found in normal Wet Spray Booth.
End Draft Paint Spray Booth System
The End Draft (the direction of flow of air is towards the floor of spray booth) Paint Spray Booth is suitable for conventional, air-less and electrostatic spray painting and its consists of painting chamber,Inlet Air Filter, Paint Trap Filters, Exhaust Fan, electric motor, duct and canopy etc. The design of the paint booth will be of End Draft type paint booth with disposable paint trap filters on floor. The intake air into the paint booth is filtered by in take filter to avoid foreign particle deposition on the painted surface. The intake air is sucked into the room by the extraction modules located on the back wall.
